Rock Bolts vs. Rock Anchors: 3 Key Differences To Know
In construction and civil engineering, stabilizing rock formations is a critical safety measure. Professionals rely on specialized ground support systems to reinforce rock masses and prevent failures. Among the most common methods are rock bolts and rock anchors, two technologies that, while similar in purpose, have distinct designs and applications.
Project managers and engineers need to understand the key differences between rock bolts and rock anchors to select the appropriate solution. Read on as we explore the fundamental distinctions between these two ground support systems.
What Is a Rock Bolt?
A rock bolt is a long steel rod used to stabilize rock excavations. Its primary function is to pin unstable surface rock to more competent, stable rock deeper within the rock mass. Think of it as stitching together layers of rock to create a reinforced, self-supporting structure. Rock bolts are typically shorter than rock anchors and are installed in a systematic pattern to secure the rock face.
Primary Function and Mechanism
The main purpose of a rock bolt is to provide immediate, active support. When a rock bolt is installed and tensioned, it applies a compressive force to the rock layers it passes through. This compression increases the frictional resistance between rock joints and fractures, preventing them from sliding or separating. The bolt essentially integrates loose or fractured rock near the surface into a single, stable unit.
This mechanism works by consolidating the rock mass and forming a reinforced arch or beam within it. The bolts carry the load of the unstable rock by transferring it to the stronger rock where the bolt is anchored. This process prevents rockfalls in tunnels, mines, and rock cuts shortly after excavation.
Installation and Tensioning
Installing a rock bolt involves drilling a hole into the rock, inserting the bolt, and then anchoring it. The anchoring mechanism can vary. Some bolts, like mechanically anchored bolts, use an expansion shell at the end that grips the sides of the borehole when the bolt is rotated. Others, like resin-grouted bolts, are secured using a fast-setting polyester resin that bonds the entire length of the bolt to the rock.
After installation, most rock bolts are tensioned. By applying a specific tension, the bolt immediately begins supporting the rock mass, clamping the rock layers together before any drastic movement can occur.
What Is a Rock Anchor?
A rock anchor, on the other hand, is a high-strength steel tendon designed to transfer a tensile load from a structure to a competent rock mass. While it also provides stabilization, its primary role is to act as a tie-back, resisting external forces that could cause movement or failure. Rock anchors are typically longer than rock bolts and are designed to handle much higher loads.
Primary Function and Mechanism
The core function of a rock anchor is to provide passive support by resisting external pulling forces. Imagine an anchor holding down a large retaining wall or securing a bridge foundation to bedrock. The anchor is installed deep into a stable rock formation, and its load-carrying capacity comes from the bond established between the anchor and the rock, usually via high-strength grout.
Large-Scale Project Use
Unlike a rock bolt, which reinforces the rock mass itself, a rock anchor transfers an external load to the rock mass. The load is transmitted from the structure (such as a wall or dam) through the steel tendon of the anchor into the stable rock deep underground.

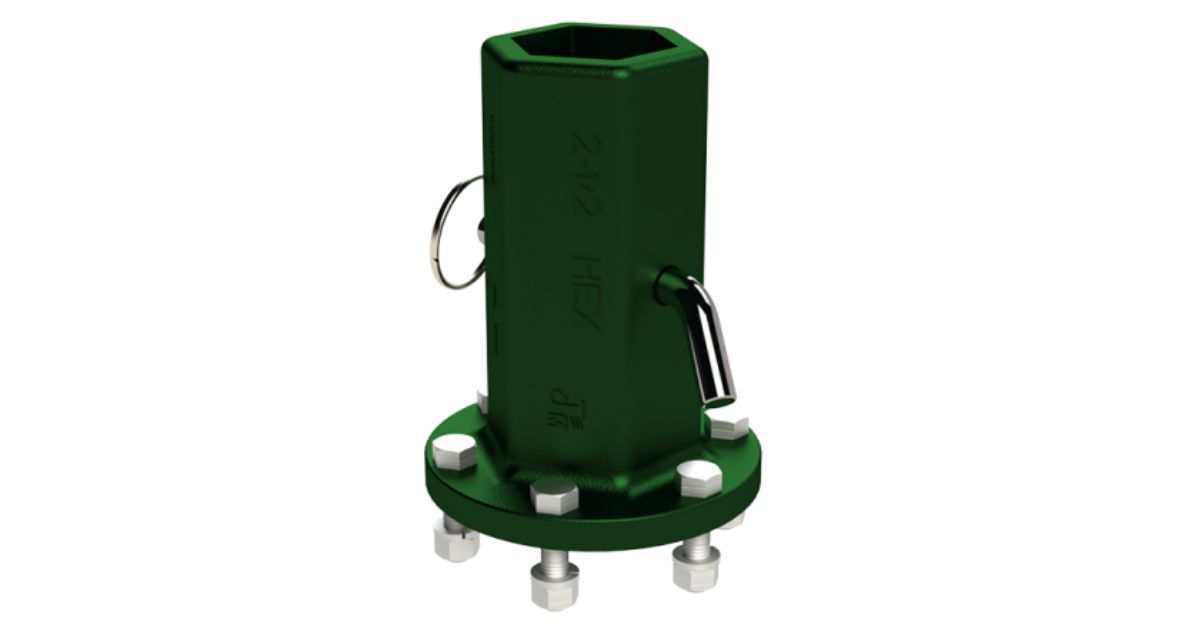

This makes anchors ideal for situations where large external forces, such as soil pressure or water uplift, need to be counteracted. The tools used in these large-scale projects, such as Kelly bar adapters for drilling, must be robust to handle the demands of creating deep boreholes for these anchors.
Installation and Tensioning
Installing a rock anchor is a more involved process. It begins with drilling a deep hole into the rock. A high-strength steel tendon, often composed of multiple strands, is then inserted. The pivotal part of the installation is creating a "bond length" at the anchor's far end. High-pressure grouting injects cement grout into this bond zone, creating a strong connection between the anchor and the competent rock.
After the grout has cured and achieved its required strength, the anchor is tensioned, or "post-tensioned." A hydraulic jack is used to pull on the anchor head, applying a specific, high-tensile load. This load is then locked off, putting the anchor into a state of permanent tension that actively resists any future movement of the structure it supports.
Fundamental Differences Explored
While both systems use tensioned steel elements to reinforce rock, their differences in function, load capacity, and application are substantial.
Load Transfer Mechanism
The most fundamental difference lies in how they transfer loads. A rock bolt transfers the load from unstable surface rock to stable rock just a short distance deeper. Its purpose is internal reinforcement, creating a composite, self-supporting rock structure.
Conversely, a rock anchor transfers a large, external tensile load from a manufactured structure (like a dam or retaining wall) to a deep, competent rock mass. Its purpose is external resistance, using the strength of the bedrock to hold a structure in place.
Length and Load Capacity
These differing functions directly influence their physical characteristics. Rock bolts are generally shorter, typically ranging from a few feet to about 20 feet. Their load-carrying capacity is designed to support the weight of localized rock blocks, normally 10 to 40 tons.
Rock anchors are much longer, often extending 50 feet or more into the rock. They are engineered to withstand enormous forces, with load capacities exceeding 1,000 tons. This high capacity is necessary to stabilize massive structures and resist environmental forces.
Applications
Rock bolts are the go-to solution for ground control in underground mining and tunneling, as well as for stabilizing road cuts. Their purpose is to prevent immediate rockfalls and ensure the safety of the excavated area.
Rock anchors are used in large-scale civil engineering projects. Common applications include tying back retaining walls, securing bridge foundations, stabilizing slopes against landslides, and anchoring dams to their bedrock foundations.
Choosing the Right System for Your Project
Selecting between a rock bolt and a rock anchor depends entirely on the specific geotechnical problem you need to solve. If your goal is to control the stability of a newly excavated rock face and prevent localized rockfalls, rock bolts are the appropriate choice.
If, however, you need to resist a large external force and anchor a structure securely to bedrock, a rock anchor is the necessary solution. Understanding the key differences between rock bolts versus rock anchors is a critical component of a safe and effective engineering design.
