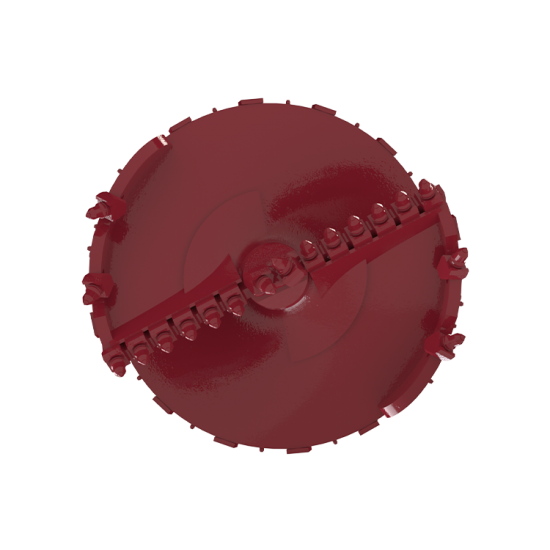

Pilotless Rock Auger

Commonly Requested Diameters:

14″– 144″ *

Type: Type 6

Cut: DC/DF, DC/SF

Kelly boxes: All boxes made to customer specifications

Center Shaft: 4″ OD – 12″ OD

➤ Solid shaft available in some sizes

Flight: 1″ – 2″ thickness available

➤ All flight ID is beveled for better weld penetration

➤ Laminate flight on all augers 30″ or larger

Wear Protection: Wear Pads

➤ 2″ x 3″ x 1/2″ (39302)

* Smaller diameters available based onKelly box size / custom sizes greater than 144”

WEAR ITEMS

.990 Rock Series Wear Parts:

➤.990 Standard (30122)

➤.990 Dragon’s Tooth® (30145)

➤.990 Tri-holder (32042)

38mm Rock Series Wear Parts:

➤B47K19LK80-H (30182)

➤38mm Dragon’s Tooth® (30188)

➤38mm Tri-holder* (32064)

*All .990 and 38mm rock augers are manufactured with Tri Holders.

 **Smaller conical teeth available upon request.
